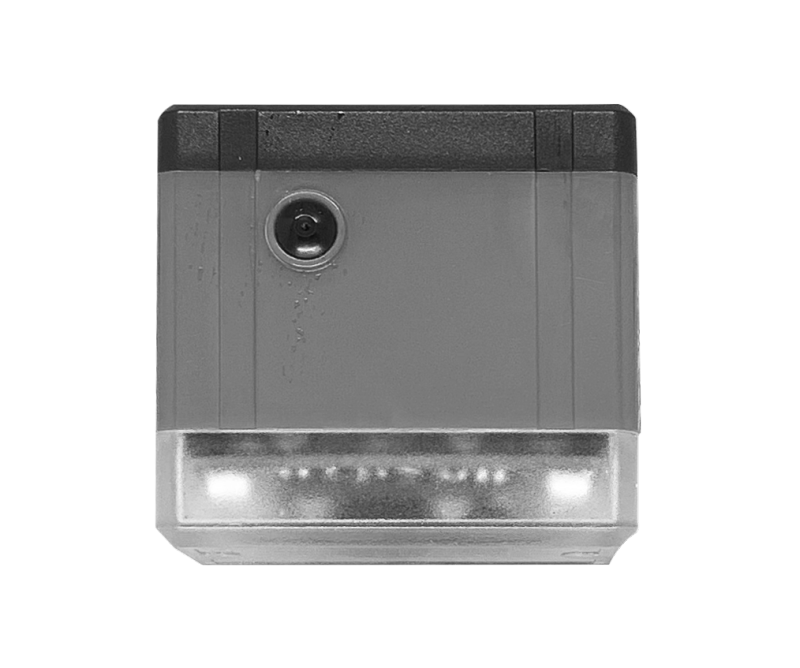

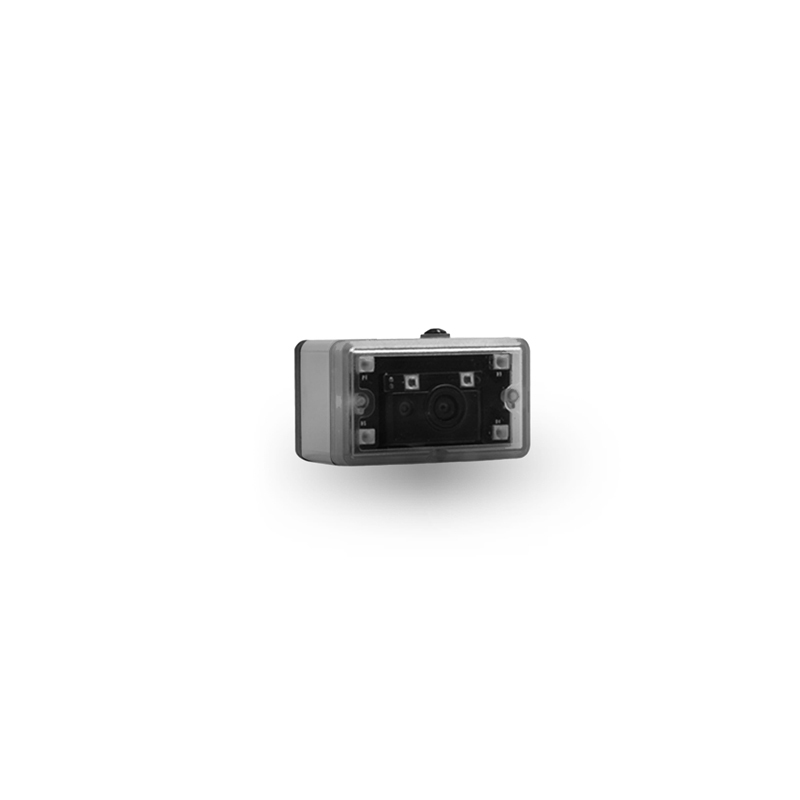

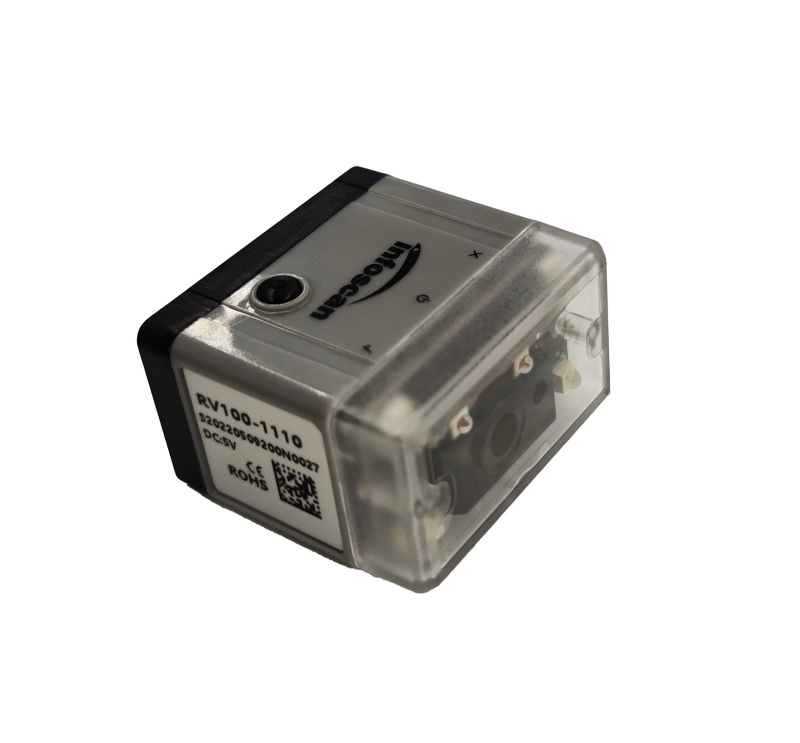

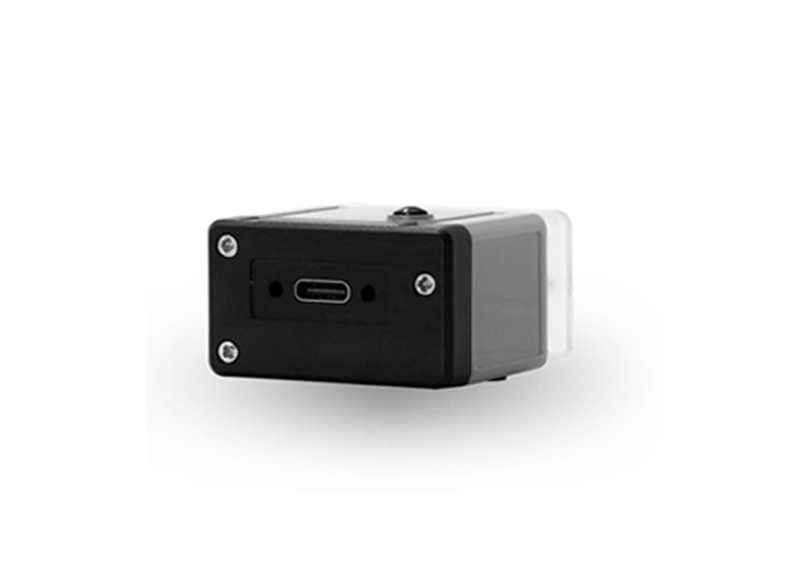

Embedded Barcode Code Scanning 1d QR Code Reading Device
▲Compact structure suitable for equipment integration
▲Common communication modes suit most equipment integration requirements
▲Megapixel combines with excellent lighting
▲Excellent code reading ability
- RV100
- China
- infoscan
- 5-7 business days / 200 units
- RS232, USB (simulation keyboard, simulation Serial port)
- 12 months
Details
| Feature | |
Ultra-small design; Embedded products that are easy to be integrated into equipments | Support commonly used communication modes; Apply to most equipment integration needs |
| The product size is only: 40mmX37.3mmX25.1mm | Support communication modes: Serial port, USB (Simulated Keyboard, Simulated Serial Port); Adaptive interface for different cables (Serial port cable and USB cable) |
| Applications | ||||
|
|
|
|
|
| Medical testing equipment integration | Robot code reading integration | Test instrument integration | Self-service terminals integration | Ink-jet code matching |
| Technical Specifications | |
| Sensor | 1/4 inch CMOS, global shutter |
| Image Resolution | 1280X800 |
| Acquisition Speed | Up to 72 frame/s |
| Focusing Mode | Fixed focus |
| Focal Length | 4mm |
| Viewing Angle | 48°（horizontal） |
| Trigger Mode | Command trigger; I/O trigger; Continuous reading mode; Key trigger; Inductive mode |
| LED Indicator | 3pcs LED indicator lights (power, reading success, reading failure) |
| Illumination Source | Body light source: 2pcs LED lights (high-brightness) Auxiliary light source: 4pcs LED lights (high-brightness) |
| Illumination Source Color | Body light source: red LED, Auxiliary light source: red LED |
| Aiming Mode | Laser cross aiming |
| Laser Safety Level | Class 2 |
| Communication Mode | RS232、USB (simulated Serial port, simulated Keyboard port) |
| Power Supply | 5VDC / USB power supply |
| Power Consumption | Standby: 1.2W Average: 1.75W Peak: 2W |
| Operating Current | Standby: 240mA Average: 350mA Peak: 400mA |
| Number of Input Signal | 1 |
| Number of Output Signal | 2 |
| Shell Material | PC + ABS |
| Weight | 28g (excluding cables) |
| Dimensions (L x W x H) | 40mm x 37.3mm x 25.1mm |
| Operating Temperature | -10 ~ 50 ℃ |
| Storage Temperature | -20 ~ 65 ℃ |
| Relative Humidity | 5% ~ 95% non-condensing |
| Vibration Resistance | 10 ~ 55 Hz: double amplitude 2.5 mm / 3 hours in X, Y or Z directions |
| IP Rating | IP54 |
| EMC | EN55032:2015 EN55024:2010 |
| Certifications | CE, RoHS |
| Readable Code Symbologies | 1D, 2D and stacked codes that meet national and international standards |
| Maximum Reading Accuracy | 1D code: 3mil 2D code: 5mil |
| Reading Distance And Visual Field Unit: mm | ||
| Barcode Specifications | Nearest | Farthest |
| 3.34mil Code 128 | 50 | 110 |
| 5mil Code 128 | 40 | 130 |
| 6.67mil Code 128 | 40 | 140 |
| 10mil Code 128 | 40 | 160 |
| 15mil Code 128 | 40 | 190 |
| 5mil DataMatrix | 40 | 110 |
| 6.67mil DataMatrix | 40 | 120 |
| 10mil DataMatrix | 40 | 150 |
| 15mil DataMatrix | 40 | 160 |
| Dimensions Unit: mm |
Any change of the information in this document may not be with prior notice; even the content of this document has been carefully checked to ensure accuracy, there may still be some errors. The data involved in this document may differ due to environmental factors, Bilin Intelligence does not bear any consequences arising from this.
